CH18: Engine Lubrication System Theory





Oil Functions





Viscosity





Oil Additives






Lubrication System Overview





Oil Collection Pan





Oil Sump






Oil Tank





Oil Pumps





Pressure Relief Valves






Oil Filters





Spurt Holes





Oil Coolers






API Ratings





SAE Ratings





Oil Pressure Indicators


 		   EN13   EN14

Splash Lubrication

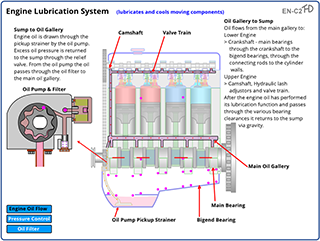

Engine Lubrication System

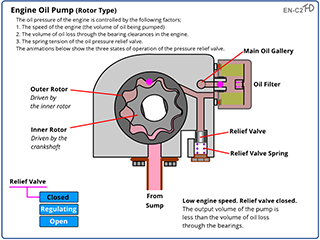

Engine Oil Pressure Control


EN15   EN16   EN17

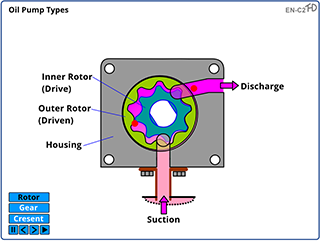

Oil Pump Types

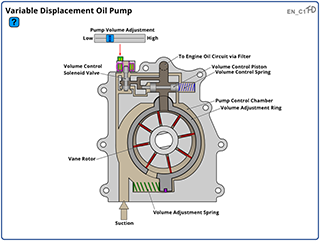

Variable Displacement Oil Pump

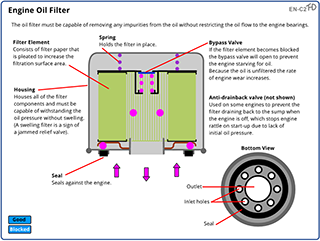

Oil Filter
